VS-HCI Series Appliances
IT Infrastructure for Mission-Critical
Surveillance and Security
Software-Based Intelligence in Pre-configured Appliances

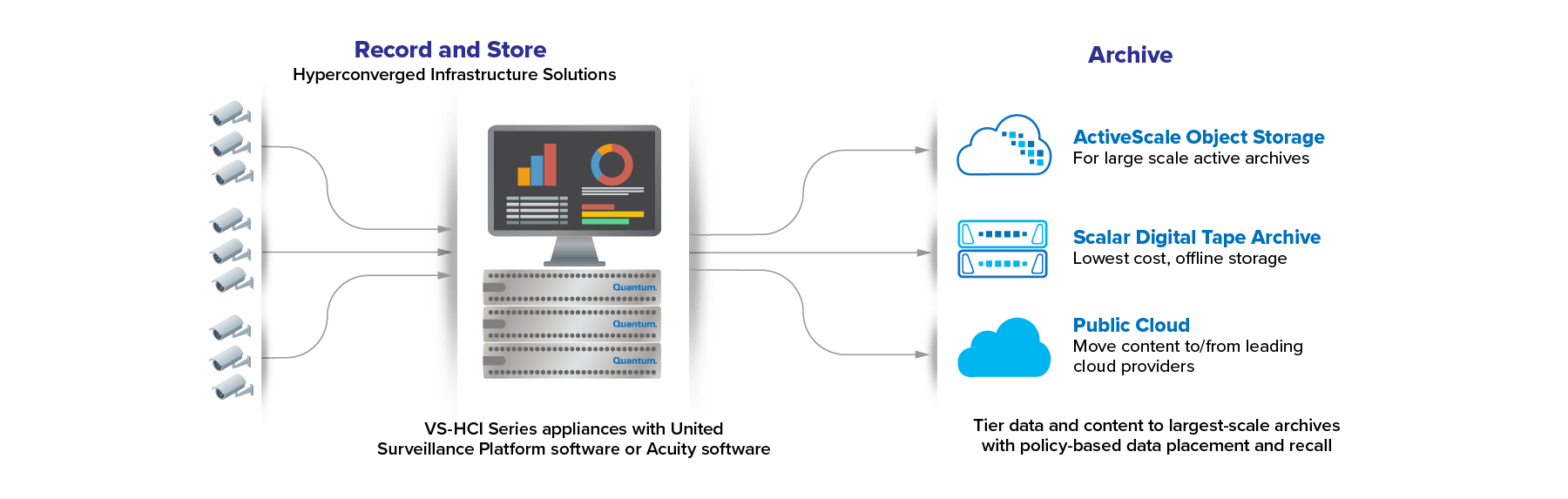

The Quantum VS-HCI Series is purpose-built for supporting video management systems (VMS), video storage and video analytics plus enabling the consolidation of other related applications such as access control onto an integrated server and storage platform called hyperconverged infrastructure (HCI).
Our VS-HCI Series uses innovative software-based intelligence and automation to simplify management, provide the highest levels of resilience and efficiency, and ensure scaling and maintenance are easy. With pre-configured appliances optimized for edge and centralized environments as well as security operations centers, and support for any VMS and video analytics, the VS-HCI Series can cover all your video capture, storage and visualization needs.
Resilience and High Availability
The patented system-level resilience and data protection technology ensures you can continue to store, access, and analyze video even in the event of disks or an appliance failure. Storage will remain online, applications automatically failover and restart, and recorded video will remain protected and accessible, all without the need for redundant software, licensing or hardware.
The software automates many management tasks such as resource allocation, health monitoring, self-healing and upgrade orchestration, meaning no specialized skills are needed to manage this enterprise-class infrastructure.
Deploy the VS-HCI Series with only the server and storage resources you currently need, minimizing your upfront costs. As camera counts grow, new camera technologies are deployed, or retention times increase, add just the storage, compute, GPU and bandwidth needed by simply adding additional appliances with no system downtime.
Purpose-built for Video
Optimized to handle the unique requirements of modern video surveillance workloads, the VS-HCI Series eliminates frame drops to ensure video loss and image degradation never occur. Every VS-HCI appliance's storage and performance resources are aggregated and available to every camera, so you can be confident that cameras will get the sustained performance they require, even in the event of hardware failure.
|Surveillance and Storage||Surveillance and Storage||Edge Surveillance and Storage||Video Analytics and Virtual SOC|
|Hyperconverged Software Platform||Pivot3 Acuity Surveillance Edition||Pivot3 Acuity Surveillance Edition||Pivot3 Acuity Surveillance Edition||Pivot3 Acuity Surveillance Edition|
|HDD Capacity (TB, per appliance)||12, 16, 24, 32, 48, 64, 96, 120, 128, 144,160, 168, 192, 224, 256, 288, 384||32, 128, 192, 256||4, 16, 32, 64||-|
|SSD Capacity (TB)||-||-||-||1.92, 3.84, 15.3|
|Max Appliances per vPG*||12||12||6||16|
|Max Storage per vPG||4.6 PB||3.0 PB||384 TB||244 TB|
|Virtualization||Server - VMware Foundation||Server - VMware Foundation||Server - VMware Foundation||Server - VMware ESXi Client - VMware Horizon|
|Optional GPU||Up to 2 x NVIDIA Tesla T4||-||-||Up to 5x NVIDIA T4 or Up to 3x NVIDIA RTX4000|
|Processor||Intel® Xeon® Scalable Processors 1x 6 Core or 1x, 2x 12 or 20 Core||AMD EPYC™ 1x 8, 16 or 32 Core||Intel Xeon Scalable Processors 1x 8 Core or 1x, 2x 12 Core||Intel Xeon Scalable Processors 2x 12, 20, or 24 Core|
|RAM (GB)||32, 48, 64, 96, or 192||32, 64, 128, or 256||16, 32, 48, or 96||64, 96, 128, 160, 192, or 384|
|Network Connectivity||6 x 10 GbE (SFP+ or RJ45)||6 x 10/25 GbE (SFP28)||4 x 10 GbE (SFP+ or RJ45)||6 x 10 GbE (SFP+ or RJ45)|
for Storage-Only Models
|4 x 10 GbE (SFP+ or RJ45)||6 x 10 GbE (RJ45)||4 x 10 GbE (SFP+ or RJ45)|
* A Virtual Performance Group (vPG) is a logical, scale-out construct that includes both virtualized servers and storage.
